Inferflow is part of BharatMLStack, a graph-driven feature retrieval and model inference orchestration engine built in Go. It eliminates the need for custom feature retrieval code by using configurable DAG topologies to dynamically resolve entity relationships, fetch features from the Online Feature Store, and orchestrate model scoring — all driven by configuration stored in etcd.

---

Overview

In a typical ML serving pipeline, every new model requires bespoke code to:

• Fetch features from multiple entities (user, product, user x category, etc.)
• Infer intermediate entity relationships (e.g., extract category from product to fetch user x category data)
• Orchestrate one or more model inference calls
• Handle I/O, batching, and error propagation

Inferflow abstracts all of this behind a config-driven DAG executor. Given a model_config_id and context entities (e.g., userId, productIds), it:

1. Loads a pre-defined feature retrieval and inference graph from etcd
2. Executes the graph to resolve entity relationships dynamically
3. Retrieves features from the Online Feature Store (OnFS) in parallel
4. Calls model serving endpoints (Predator) and compute services (Numerix)
5. Returns scored results as a structured response

---

High-Level Architecture

The diagram shows the internal DAG structure of Inferflow's topology executor. gRPC APIs (Pair, Point, Slate) feed into the DAG, where Feature Init bootstraps the ComponentMatrix. Feature components (FS User, FS Product, FS Region, FS User Cat, FS Region Scat) fetch features from OnFS in parallel and populate columns in the shared 2D Result Matrix. Model components (Model A, Model B) call Predator for inference, and compute components call Numerix for operations like reranking. The entire DAG topology is driven by config loaded from etcd.

---

Core Components

1. gRPC Server

Inferflow exposes its APIs via a gRPC server, with HTTP health endpoints multiplexed on the same port using cmux. The server provides:

• Inferflow API — RetrieveModelScore: entity-based feature retrieval and scoring
• Predict API — InferPointWise, InferPairWise, InferSlateWise: structured inference with targets, pairs, and slates

2. DAG Topology Executor

The heart of Inferflow. Each model configuration defines a component_dependency map that describes a Directed Acyclic Graph (DAG) of components.

Execution model:

• Uses Kahn's algorithm for topological ordering
• Components at the same level run concurrently in goroutines
• All components share a mutable ComponentMatrix (rows = entity IDs, columns = features/scores)
• DAG topologies are cached using Murmur3 hashing with Ristretto cache

Validation:

• Cycle detection via in-degree analysis
• Component existence verification against the ComponentProvider

3. Component Types

Inferflow defines four types of DAG components:

Component	Role	External Dependency
FeatureInitComponent	Root node — initializes the ComponentMatrix with entity IDs and schema	None
FeatureComponent	Fetches features from the Online Feature Store for a specific entity type	OnFS (gRPC)
PredatorComponent	Calls model serving endpoints for inference scoring	Predator / Helix (gRPC)
NumerixComponent	Calls compute engine for operations like reranking	Numerix (gRPC)

4. ComponentMatrix — The 2D Result Matrix

The ComponentMatrix is a shared, mutable 2D data structure that flows through the entire DAG. Every component reads from and writes to this matrix, progressively building a complete feature + score row for each entity.

How the matrix evolves through the DAG

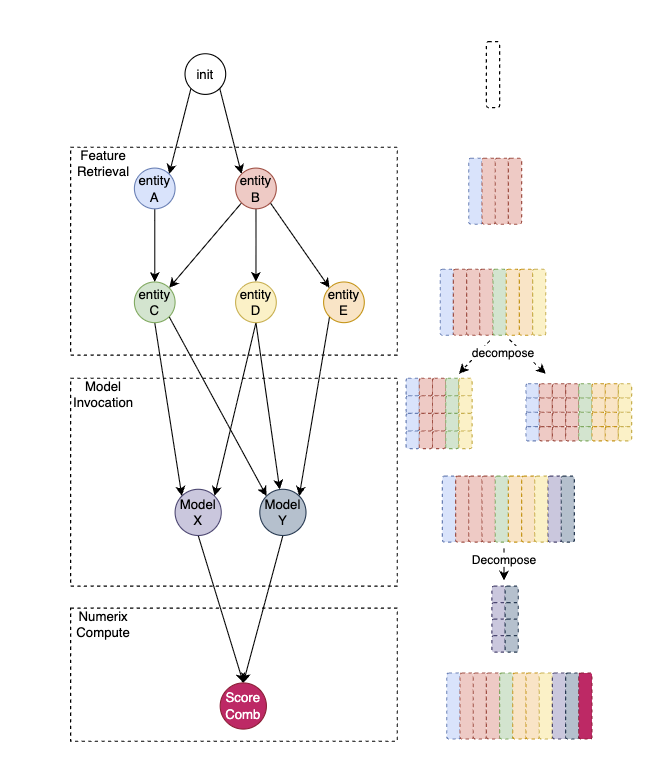

The diagram above illustrates the three execution phases and how the 2D matrix grows at each stage:

Phase 1 — Feature Retrieval

The init node creates an empty matrix with one row per target entity ID. Feature components then execute — first the top-level entities (entity A, entity B) fetch their features from OnFS and populate their columns (shown as colored blocks). Derived entities (entity C, D, E) resolve their keys from the already-populated columns and add more feature columns. At this point the matrix contains all feature data, with each color representing features from a different entity.

The right side of the diagram shows the matrix being decomposed — feature columns from different entities are separated into per-model input groups, selecting only the features each model needs.

Phase 2 — Model Invocation

Model X and Model Y each receive their decomposed feature slices, call Predator for inference, and write score columns back into the matrix (shown as new colored columns appended to the right). Multiple models can run in parallel if they don't depend on each other's outputs.

The scores are then decomposed again to prepare inputs for the compute stage.

Phase 3 — Numerix Compute

The Score Comb node takes score columns from both models, calls Numerix for a final compute operation (e.g., score combination, reranking), and writes the final score column (shown in dark red) into the matrix. The result is a complete row per entity with all features and all scores.

Matrix structure

Property	Description
Rows	One per target entity ID (e.g., each product being scored)
String columns	Human-readable values used in responses
Byte columns	Binary-encoded feature values used for model inputs
Column naming	entity_label:feature_group:feature_name

Each component only reads the columns it needs and writes to its own columns, enabling safe concurrent execution across independent branches of the DAG.

For slate-based APIs, a companion SlateData structure holds per-slate matrices and scores, with slate_target_indices mapping slates to rows in the main matrix.

5. Configuration Management (etcd)

Model configurations are stored in etcd and hot-reloaded via watchers:

• Config paths: /config/inferflow/services/, /model-config
• Watch mechanism: etcd watchers trigger ReloadModelConfigMapAndRegisterComponents on any change
• On reload: Updates ConfigMap, re-initializes feature schemas, and re-registers DAG components

This means new models or configuration changes go live without redeployment.

6. External Integrations

Online Feature Store (OnFS)

• gRPC client calling FeatureService.RetrieveFeatures
• Batched retrieval with configurable batch size and deadline
• Auth via CALLER_ID and CALLER_TOKEN metadata

Predator (Model Serving)

• Uses go-sdk for model inference
• Supports percentage-based traffic routing across multiple model endpoints
• Configurable calibration and batch sizing

Numerix (Compute Engine)

• Uses go-sdk Numerix client
• RPC: NumerixService.Compute with entity score data
• Used for compute operations like reranking

Kafka (Inference Logging)

• Async inference log publishing using segmentio/kafka-go
• Supports Proto, Arrow, and Parquet serialization formats
• Configurable sampling via LoggingPerc and user-based daily sampling

---

Request Flow

1. Client sends gRPC request with model_config_id + entity IDs
                    │
2. Load ModelConfig from etcd-backed ConfigMap
                    │
3. Adapt proto request → ComponentRequest
   (build ComponentMatrix with entity schema)
                    │
4. Resolve DAG topology from component_dependency config
                    │
5. Execute DAG (Kahn's algorithm, concurrent):
   │
   ├─ FeatureInitComponent: populate matrix with entity IDs + schema
   │
   ├─ FeatureComponents (parallel): fetch features from OnFS → fill matrix columns
   │
   ├─ PredatorComponent: build feature payloads from matrix → call model → write scores
   │
   └─ NumerixComponent: read scores from matrix → call compute → write final scores
                    │
6. Build response from matrix columns per ResponseConfig
                    │
7. (Optional) Async Kafka logging of inference features and scores
                    │
8. Return gRPC response to client

---

Observability

Metrics (StatsD / Telegraf)

Metric	Description
inferflow.retrievemodelscore.request.total	Total RetrieveModelScore requests
inferflow.retrievemodelscore.latency	End-to-end latency
inferflow.retrievemodelscore.batch.size	Batch size per request
predict.infer.request.total	Total Predict API requests
predict.infer.latency	Predict API latency
inferflow.component.execution.total	Per-component execution count
inferflow.component.execution.latency	Per-component latency
inferflow.component.execution.error	Component-level errors
inferflow.component.feature.count	Feature count per component
inferflow.external.api.request.total	External API call count
inferflow.external.api.latency	External API latency
inferflow.component.inmemorycache.request.total	Cache hit/miss total
inferflow.component.inmemorycache.miss	Cache misses
inferflow.logging.kafka_sent	Kafka log messages sent

Logging

• Structured JSON logging via zerolog
• Configurable log levels

---

Deployment

Docker

Inferflow ships as a multi-stage Docker image:

• Builder: Go 1.19 Alpine with optional Kafka support (librdkafka)
• Runtime: Debian 10 slim
• Build command: go build -tags musl -ldflags "-extldflags -static" -o server cmd/${module}/main.go

Supported Environments

• Kubernetes (K8s)
• Google Kubernetes Engine (GKE)
• Amazon EKS

Configuration

All configuration is driven via environment variables (loaded by Viper) and etcd. No config files are required at deployment time.

---

Target Users

User	Role
Data Scientists	Define model configs and feature retrieval graphs via config — no code needed
ML Engineers	Onboard new models by updating etcd config; manage DAG topologies
Backend Developers	Integrate via gRPC SDKs for real-time scoring in application services
Platform Engineers	Deploy, scale, and monitor Inferflow clusters

---

Benefits

• No-code feature retrieval — new models need only a config change, not custom code
• Feature consistency — same graph-driven retrieval ensures identical features across experiments
• Faster iteration — experiment with new models in minutes, not days
• Concurrent execution — DAG components run in parallel for minimal latency
• Hot reloading — model config changes via etcd go live without redeployment
• Multi-API support — PointWise, PairWise, and SlateWise inference patterns out of the box
• Production-grade — built in Go with gRPC, designed for millions of QPS

---

Contributing

We welcome contributions from the community! Please see our Contributing Guide for details on how to get started.
